Beschreibung
Technische Parameter
Material:Legierungstahl, SS316, SS410, Bimetal
| Größe | d0 mm |
Hnom mm |
tfix mm |
SW mm |
| 6X30 | 6 | 25 | 25 | 10 |
| 6X50 | 6 | 25 | 25 | 10 |
| 6X60 | 6 | 50 | 50 | 10 |
| 6X75 | 6 | 50 | 50 | 10 |
| 6X100 | 6 | 50 | 50 | 10 |
| 8X50 | 8 | 45 | 45 | 13 |
| 8X60 | 8 | 45 | 45 | 13 |
| 8X75 | 8 | 65 | 65 | 13 |
| 8X80 | 8 | 65 | 65 | 13 |
| 8X100 | 8 | 65 | 65 | 13 |
| 10X60 | 10 | 55 | 55 | 15 |
| 10X75 | 10 | 55 | 55 | 15 |
| 10X100 | 10 | 55 | 55 | 15 |
| 10X120 | 10 | 75 | 75 | 15 |
| 10X140 | 10 | 75 | 75 | 15 |
| 12X75 | 12 | 70 | 70 | 16 |
| 12X100 | 12 | 90 | 90 | 16 |
| 12X150 | 12 | 90 | 90 | 16 |
| 16X100 | 16 | 90 | 90 | 21 |
| 16X150 | 16 | 90 | 90 | 21 |
| 1/4X1-3/4 | 1/4" | 1-5/8" | 1/8" | 7/16" |
| 1/4X2-1/4 | 1/4" | 1-5/8" | 5/8" | 7/16" |
| 1/4X2-5/8 | 1/4" | 1-5/8" | 1" | 7/16" |
| 1/4X3 | 1/4" | 1-5/8" | 1-3/8" | 7/16" |
| 1/4X4 | 1/4" | 1-5/8" | 2-3/8" | 7/16" |
| 3/8X2-1/2 | 3/8" | 2" | 1/2" | 9/16" |
| 3/8X3 | 3/8" | 2" | 1" | 9/16" |
| 3/8X3-1/2 | 3/8" | 2" | 1-1/2" | 9/16" |
| 3/8X4 | 3/8" | 2" | 2" | 9/16" |
| 3/8X5 | 3/8" | 2" | 3" | 9/16" |
| 3/8X6 | 3/8" | 2" | 4" | 9/16" |
| 1/2X3 | 1/2" | 2-1/2" | 1/2" | 3/4" |
| 1/2X3-1/2 | 1/2" | 3-1/4" | 1/4" | 3/4" |
| 1/2X4 | 1/2" | 3-1/4" | 3/4" | 3/4" |
| 1/2X4-1/2 | 1/2" | 3-1/4" | 1-1/4" | 3/4" |
| 1/2X5 | 1/2" | 3-1/4" | 1-3/4" | 3/4" |
| 1/2X7 | 1/2" | 3-1/4" | 3-3/4" | 3/4" |
| 1/2X8 | 1/2" | 3-1/4" | 4-3/4" | 3/4" |
| 5/8X4 | 5/8" | 3-3/4" | 1/4" | 15/16" |
| 5/8X5 | 5/8" | 3-3/4" | 1-1/4" | 15/16" |
| 5/8X6 | 5/8" | 3-3/4" | 2-1/4" | 15/16" |
| 5/8X6-1/2 | 5/8" | 3-3/4" | 2-3/4" | 15/16" |
| 5/8X7 | 5/8" | 3-3/4" | 3-1/4" | 15/16" |
| 5/8X8 | 5/8" | 3-3/4" | 4-1/4" | 15/16" |
| 3/4X4-1/2 | 3/4" | 4" | 1/2" | 1-1/8" |
| 3/4X5 | 3/4" | 4" | 1" | 1-1/8" |
| 3/4X5-1/2 | 3/4" | 4" | 1-1/2" | 1-1/8" |
| 3/4X6 | 3/4" | 4" | 2" | 1-1/8" |
| 3/4X7 | 3/4" | 4" | 3" | 1-1/8" |
| 3/4X8 | 3/4" | 4" | 4" | 1-1/8" |

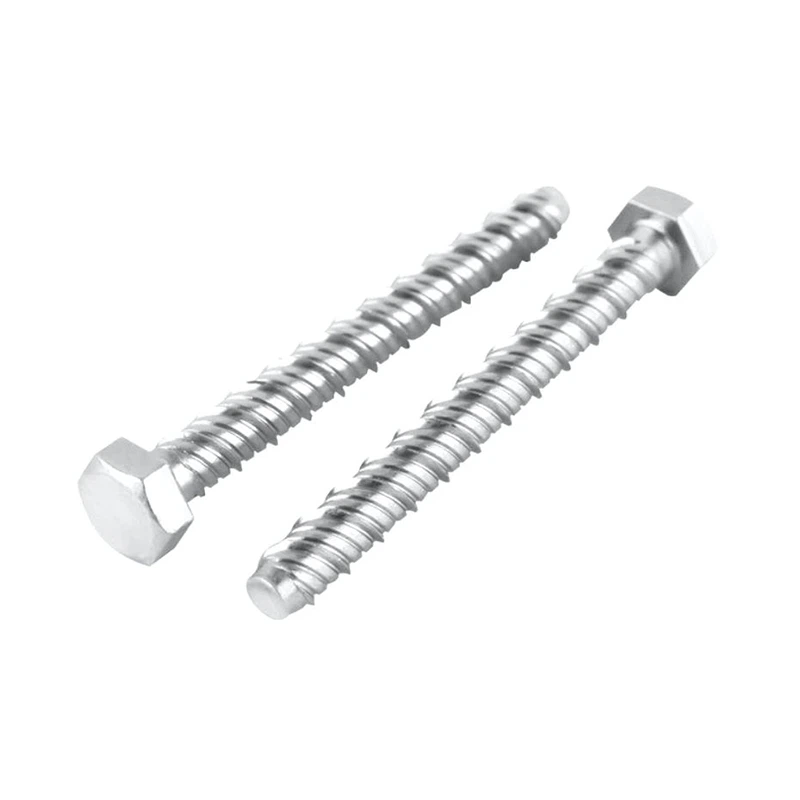

Beliebte label: Sechskantbetonschraube aus rostfreiem Stahl, China Edelstahl Sechskantbeton -Betonschraubenhersteller, Lieferanten, Fabrik
